VGVKSA

Bolden Commercial
Safety High·Loading Power Performance Smart·Safety High Loading Specifications
Test drive

Super·Power Smart·Safety High·Loading

Super·Power
Mix two powers To redefine the driving way by high efficiency and economy

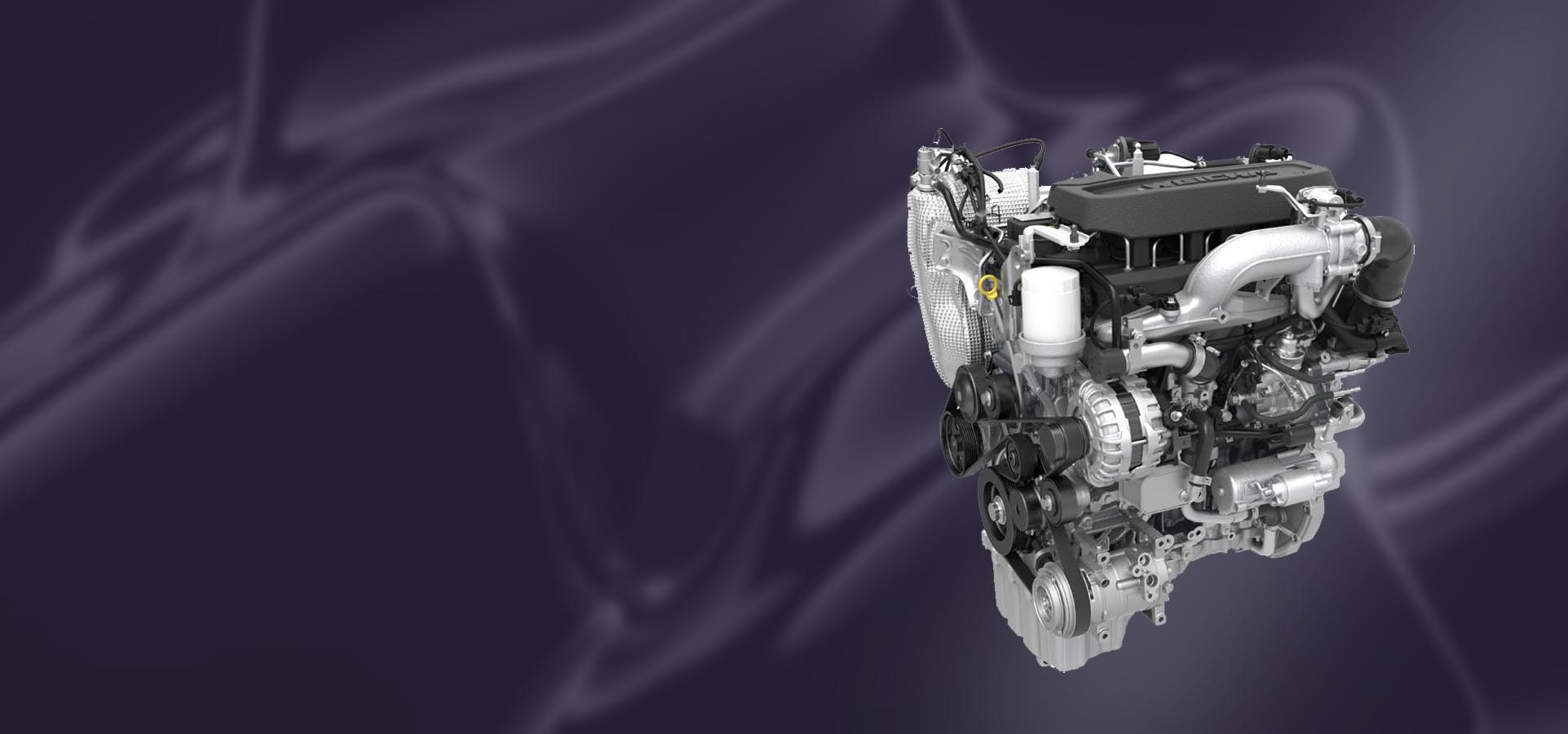

  1. WEICHAI
    WP2H2.0T DIESEL ENGINE
  2. 8AT/6MT
    8AT/6MT
  3. 140kW
    Max. Power
  4. 420N·m
    Max. Torque

Silent Performance

Ultra-low temperature Start-Up Performance

Advanced aftertreatment technology

Long- Term Warranty

Original Deep Sea Submarine NVH
Technology Rattle
Noise at Idle ≤41
Decibel

Original Ultra-low temperature Diesel
Start-Up Technology

Using AdBlue urea double-injection system

Long- Term Engine maintenance intervals for 12 months / 20,000 km

Better than Petrol Engine

With 6 technologies, it can start up at －40°temperature in one time

High Oil Suitability

Long-term Engine Warranty for 60 months / 160,000

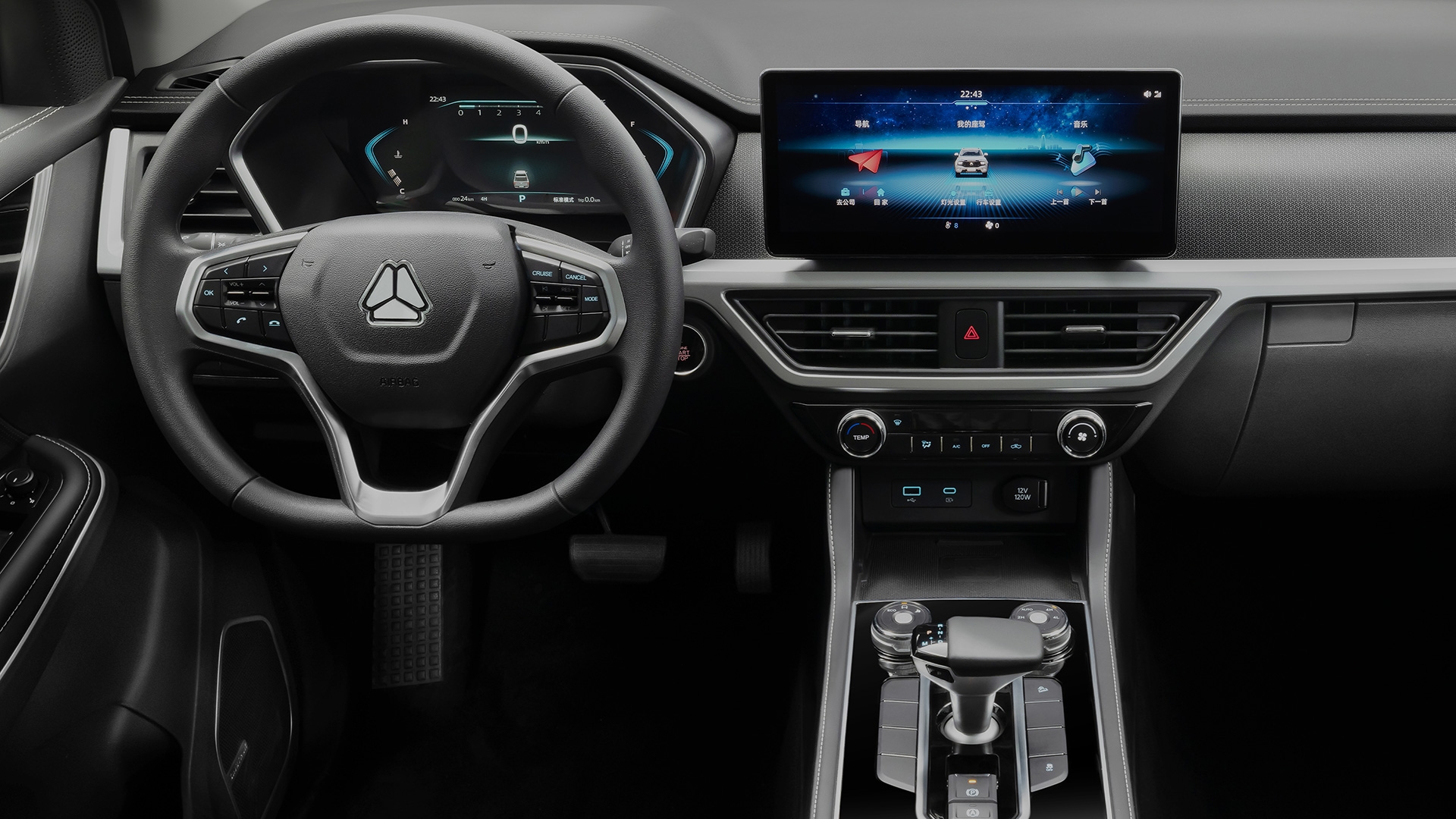

Human-Automation Interaction, making driving more convenient.With assist system, make the move forward and backward more accurate.

  1. 6 Intelligent Driving Assist Functions
  2. ESP 9.3 PLUS BOSCH 9.3 ESP System
  3. IoV IoV
  4. 4 Airbags































High Loading

Leading Loading Space Comparing the same level pickups Meeting Diversified Loading Need

Version

Comercial Version

Transmission

6MT

8AT

Drive mode

Two-wheel drive

Four-wheel drive

Two-wheel drive

Four-wheel drive

wo-wheel drive

Two-wheel drive

Four-wheel drive

Configuration

Young

Luxury

Young

Luxury

Young

Luxury

Young

Luxury

Young

Luxury

Young

Luxury

Young

Luxury
Basic information
Length*Width*Height(mm) 5645*1895*1890 5365*1895*1890 5645*1895*1890
Internal size of cargo bed(mm) 1800*1520*530 1520*1520*530 1800*1520*530
Wheelbase（mm） 3470 3230 3470
Engine model WP2H WP2H
Energy Diesel Diesel
Engine type High pressure common rail、turbo engine intercooler High pressure common rail、turbo engine intercoolerr
Maximum power kW/(r/min 140/4000 140/4000
Maximum torque N•m/(r/min) 420/1750-2500 420/1750-2500
Steering Hydraulic power Hydraulic power
Suspension（front/rear） Double wishbone independent suspension/steel spring Double wishbone independent suspension/steel spring
Safety
Braking Ventilated disc Ventilated disc
Electronic stability program（ESP） ● ● ● ● ● ● ● ● ● ● ● ●
Anti-lock brake system（ABS） ● ● ● ● ● ● ● ● ● ● ● ●
Electronic brakeforce distribution（EBD） ● ● ●   ● ● ● ● ● ● ● ●
Traction control system（TCS） ● ● ● ● ● ● ● ● ● ● ● ●
Brake assist（BA） ● ● ● ● ● ● ● ● ● ● ● ●
Brake override system（BOS） ● ● ● ● ● ● ● ● ● ● ● ●
Drag torque control（DTC） ● ● ● ● ● ● ● ● ● ● ● ●
Anti rolling program（ARP） ● ● ● ● ● ● ● ● ● ● ● ●
Hill-start assist control（HAC） ● ● ● ● ● ● ● ● ● ● ● ●
Down-hill assist control（DAC） - - - - ● ● ● ● ● ● ● ●
Electronic parking brake（EPB） - - - - ● ● ● ● ● ● ● ●
Airbag (Dural) ● ● ● ● ● ● ● ● ● ● ● ●
Front side airbag、Side curtain airbag - ● - ● - ● - ● - ● - ●
Front seat belt (with pre tensioners +force limiter) ● ● ● ● ● ● ● ● ● ● ● ●
Rear three-point seat belt ● ● ● ● ● ● ● ● ● ● ● ●
Front seat belt warning (warning light + sound) ● ● ● ● ● ● ● ● ● ● ● ●
Autonomous emergency braking system（AEB） - - - - - - - ● - - - ●
Front collision warning（FCW） - - - - - - - ● - - - ●
Lane departure warning（LDW - - - - - - - ● - - - ●
Traffic sign recognition（TSR） - - - - - - - ● - - - ●
Intelligent headlamp control（IHC - - - - - - - ● - - - ●
Speed assist system（SAS - - - - - - - ● - - - ●
Tire-pressure monitoring system (TPMS ● ● ● ● ● ● ● ● ● ● ● ●
All-wheel drive lock mode ● ● ● ● ● ● ● ● ● ● ● ●
Automatically unlocking function ● ● ● ● ● ● ● ● ● ● ● ●
Collision oil-braking system ● ● ● ● ● ● ● ● ● ● ● ●
Reversing radar ● ● ● ● ● ● ● ● ● ● ●
Reversing image ● ● ● ● ● ● ● ● ● ● ● ●
Right blind spots assist - ● - ● - ● - ● - ● - ●
Anti-theft engine ● ● ● ● ● ● ● ● ● ● ● ●
Brake facing abrasion Warning ● ● ● ● ● ● ● ● ● ● ● ●
Intelligent technology
Constant Speed Cruise control    ● ● ● ● ● ● ● - ● ● ● -
ACC - - - - - - - ● - - - ●
Driving Mode - - -

-

 ECO
Sports
Standard		 ECO
Sports
Standard		 ECO
Sports
Standard		 ECO
Sports
Standard		 ECO
Sports
Standard		 ECO
Sports
Standard		 ECO
Sports
Standard		 ECO
Sports
Standard
Electronic gear-shifting - - - - ● ● ● ● ● ● ● ●
Automatic parking - - - - ● ● ● ● ● ● ● ●
12.3-inch central touchscreen ● ● ● ● ● ● ● ● ● ● ● ●
Satellite navigation system ● ● ● ● ● ● ● ● ● ● ● ●
6 Speakers ● ● ● ● ● ● ● ● ● ● ● ●
A Bluetooth hands-free call system ● ● ● ● ● ● ● ● ● ● ● ●
Rear windowe heating defroster ● ● ● ● ● ● ● ● ● ● ● ●
E-instructions -   -   - ● - ● - ● - ●
12 V outlet in the front ● ● ● ● ● ● ● ● ● ● ● ●
Exterior
Tyre 245/70 R17 245/70 R17
Aluminum alloy wheel hub ● ● ● ● ● ● ● ● ● ● ● ●
Power adjustment exterior rearview mirror/cornering lights ● ● ● ● ● ● ● ● ● ● ● ●
Exterior power heating rearview mirror - ● - ● - ● - ● - ● - ●
Side pedal ● ● ● ● ● ● ● ● ● ● ● ●
Paint cargo box ● ● ● ● ● ● ● ● ● ● ● ●
Rope hook outside cargo bed ● ● ● ● ● ● ● ● ● ● ● ●
Ladder outside cargo bed ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
Front fog lamp - ● - ● - ● - ● - ● - ●
Adjustable Front headlight ● ● ● ● ● ● ● ● ● ● ● ●
Automatic headlights - ● - ● - ● - ● - ● - ●
Halogen headlights ● ● ● ● ● ● ● ● ● ● ● ●
Steering auxiliary light - ● - ● - ● - ● - ● - ●
High brake light ● ● ● ● ● ● ● ● ● ● ● ●
LED daytime running lamp ● ● ● ● ● ● ● ● ● ● ● ●
Electronic sunroof - ● - ● - ● - ● - ● - ●
Shark fin style antenna wire ● ● ● ● ● ● ● ● ● ● ● ●
Boneless windshield wiper ● - ● - ● - ● - ● - ● -
Auto boneless windshield wiper - ● - ● - ● - ● - ● - ●
Anti-roll bar ● ● ● ● ● ● ● ● ● ● ● ●
Interior
Tyre     245/70 R17 245/70 R17
Black and grey car interior ● ● ● ● ● ● ● ● ● ● ● ●
Slush molding meter ● ● ● ● ● ● ● ● ● ● ● ●
7-inch LCD color meter ● ● ● ● ● ● ● ● ● ● ● ●
Automatic air conditioner ● - ● - ● - ● - ● - ● -
Dual zone automatic air conditioner - ● - ● - ● - ● - ● - ●
Electronic car window ● ● ● ● ● ● ● ● ● ● ● ●
One-button lifting window with anti-pinch function ● ● ● ● ● ● ● ● ● ● ● ●
Keyless entry ● ● ● ● ● ● ● ● ● ● ● ●
One key start button ● ● ● ● ● ● ● ● ● ● ● ●
Faux leather steering wheel ● ● ● ● ● ● ● ● ● ● ● ●
Multi-function steering wheel ● ● ● ● ● ● ● ● ● ● ● ●
2-way manual ajustable steering wheel ● ● ● ● ● ● ● ● ● ● ● ●
Fabric seat ● - ● - ● - ● - ● - ● -
Faux leather seat - ● - ● - ● - ● - ● - ●
6-way manual adjustable Driver seat ● ● ● ● ● ● ● ● ● ● ● ●
副驾驶座椅手动4向调节 ● ● ● ● ● ● ● ● ● ● ● ●
4-way manual adjustable passenger seat ● - ● - ● - ● - ● - ● -
Rear 4-6 seat(foldable/unfixed cushion) ● ● ● ● ● ● ● ● ● ● ● ●
Anti-roll bar ● ● ● ● ● ● ● ● ● ● ● ●
Internationally standardised car seat fitting system(ISOFIX) ● ● ● ● ● ● ● ● ● ● ● ●
Reading lamp ● ● ● ● ● ● ● ● ● ● ● ●
Spectacles case ● ● ● ● ● ● ● ● ● ● ● ●
Sun visor on driver and passenger seat ● ● ● ● ● ● ● ● ● ● ● ●
Sun visor ( with ticket holder) ● ● ● ● ● ● ● ● ● ● ● ●
Anti-glare manual interior rearview mirror ● - ● - ● - ● - ● - ● -
Anti-glare auto rearview mirror - ● - ● - ● - ● - ● - ●
Dust filter ● ● ● ● ● ● ● ● ● ● ● ●
Driving recorder joint - ● - ● - ● - ● - ● - ●
ETC ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○
Note：● Standard ○ Optional - Not
